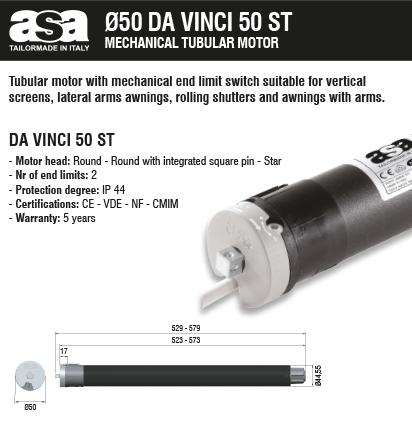

Tubular motor with mechanical end limit switch suitable for vertical screens, lateral arms awnings, rolling shutters and awnings with arms. Available in 3 configurations: round head - round head with integrated square pin head - star head.
Technical data:
- Technical features - round head
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2240211 DAVINCI 50 ST 6/32 G1 A1 B1 6 Nm 32 rpm 230 V ~/50 Hz 28 120 W 523 mm 1,74 Kg 2240215 DAVINCI 50 ST 6/17 G1 A1 B1 6 Nm 16 rpm 230 V ~/50 Hz 28 98 W 546 mm 1,68 Kg 2241573 DAVINCI 50 ST 10/17 G1 A1 B1 10 Nm 17 rpm 230 V ~/50 Hz 28 120 W 523 mm 1,72 Kg 2242297 DAVINCI 50 ST 15/17 G1 A1 B1 15 Nm 17 rpm 230 V ~/50 Hz 28 150 W 523 mm 1,77 Kg 2243680 DAVINCI 50 ST 20/17 G1 A1 B1 20 Nm 17 rpm 230 V ~/50 Hz 28 190 W 573 mm 1,89 Kg 2244137 DAVINCI 50 ST 25/17 G1 A1 B1 25 Nm 17 rpm 230 V ~/50 Hz 28 200 W 573 mm 1,94 Kg 2245537 DAVINCI 50 ST 30/17 G1 A1 B1 30 Nm 17 rpm 230 V ~/50 Hz 28 240 W 573 mm 1,98 Kg 2246154 DAVINCI 50 ST 35/17 G1 A1 B1 35 Nm 17 rpm 230 V ~/50 Hz 28 240 W 573 mm 1,98 Kg 2247455 DAVINCI 50 ST 40/17 G1 A1 B1 40 Nm 17 rpm 230 V ~/50 Hz 28 240 W 573 mm 1,98 Kg 2248101 DAVINCI 50 ST 45/12 G1 A1 B1 45 Nm 12 rpm 230 V ~/50 Hz 28 240 W 573 mm 1,98 Kg 2249452 DAVINCI 50 ST 50/12 G1 A1 B1 50 Nm 12 rpm 230 V ~/50 Hz 28 240 W 573 mm 1,98 Kg - Technical features - round head with integrated square pin
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2240210 DAVINCI 50 ST 6/32 G1 A2 B1 6 Nm 32 rpm 230 V ~/50 Hz 28 120 W 529 mm 1,75 Kg 2240214 DAVINCI 50 ST 6/17 G1 A2 B1 6 Nm 17 rpm 230 V ~/50 Hz 28 100 W 529 mm 1,69 Kg 2241572 DAVINCI 50 ST 10/17 G1 A2 B1 10 Nm 17 rpm 230 V ~/50 Hz 28 120 W 529 mm 1,73 Kg 2242296 DAVINCI 50 ST 15/17 G1 A2 B1 15 Nm 17 rpm 230 V ~/50 Hz 28 150 W 529 mm 1,78 Kg 2243679 DAVINCI 50 ST 20/17 G1 A2 B1 20 Nm 17 rpm 230 V ~/50 Hz 28 190 W 579 mm 1,90 Kg 2244136 DAVINCI 50 ST 25/17 G1 A2 B1 25 Nm 17 rpm 230 V ~/50 Hz 28 200 W 579 mm 1,94 Kg 2245536 DAVINCI 50 ST 30/17 G1 A2 B1 30 Nm 17 rpm 230 V ~/50 Hz 28 240 W 579 mm 1,99 Kg 2246144 DAVINCI 50 ST 35/17 G1 A2 B1 35 Nm 17 rpm 230 V ~/50 Hz 28 240 W 579 mm 1,99 Kg 2247454 DAVINCI 50 ST 40/17 G1 A2 B1 40 Nm 17 rpm 230 V ~/50 Hz 28 240 W 579 mm 1,99 Kg 2248100 DAVINCI 50 ST 45/12 G1 A2 B1 45 Nm 12 rpm 230 V ~/50 Hz 28 240 W 579 mm 1,99 Kg 2249451 DAVINCI 50 ST 50/12 G1 A2 B1 50 Nm 12 rpm 230 V ~/50 Hz 28 240 W 579 mm 1,99 Kg - Technical features - star head
CODE DESCRIPTION TORQUE SPEED LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2254569 DAVINCI 50 ST 6/32 G1 A10 B1 6 Nm 32 rpm 28 120 W 526 mm 1,74 Kg 2254223 DAVINCI 50 ST 6/17 G1 A10 B1 6 Nm 17 rpm 28 100 W 526 mm 1,68 Kg 2254224 DAVINCI 50 ST 10/17 G1 A10 B1 10 Nm 17 rpm 28 120 W 526 mm 1,72 Kg 2254225 DAVINCI 50 ST 15/17 G1 A10 B1 15 Nm 17 rpm 28 150 W 526 mm 1,77 Kg 2254226 DAVINCI 50 ST 20/17 G1 A10 B1 20 Nm 17 rpm 28 190 W 576 mm 1,89 Kg 2254227 DAVINCI 50 ST 25/17 G1 A10 B1 25 Nm 17 rpm 28 200 W 576 mm 1,93 Kg 2254228 DAVINCI 50 ST 30/17 G1 A10 B1 30 Nm 17 rpm 28 240 W 576 mm 1,98 Kg 2254229 DAVINCI 50 ST 35/17 G1 A10 B1 35 Nm 17 rpm 28 240 W 576 mm 1,98 Kg 2254230 DAVINCI 50 ST 40/17 G1 A10 B1 40 Nm 17 rpm 28 240 W 576 mm 1,98 Kg 2254231 DAVINCI 50 ST 45/12 G1 A10 B1 45 Nm 12 rpm 28 240 W 576 mm 1,98 Kg 2254232 DAVINCI 50 ST 50/12 G1 A10 B1 50 Nm 12 rpm 28 240 W 576 mm 1,98 Kg - Brackets - round head
CODE DESCRIPTION 2204001 Bracket with square pin - threaded holes with center - to - center distance 48 mm 2204003 Fast connection bracket minimum overall dimensions (only for motors max 35 Nm) 2204011 100x100 bracket with two positions round pin 2204014 Bracket with square pin - center to center distance 48/60 mm 2204017 Bracket Ø 10 threading pin for the direct clutch on the existing clamp 2204022 Bracket for support type "Torino" (match with square pin for motors) 2204032 Bracket with "open" housing for square pin. Clutch the pin from "above" (only for motors max 30 Nm) 2204042 Bracket for mini boxes - Length 137 mm 2204045 Metal bracket with hexagonal pin. Clutch the pin from "above" 2204088 100 x 100 bracket plate 2204100 Adjustable bracket with two positions round pin 2204107 Bracket for mini boxes - Length 90 mm 2204109 Minimum overall dimension bracket 2204112 Bracket for awnings with two positions round pin 2204145 Bracket with two positions round pin and housing 2204198 100 x 100 bracket with two positions square pin 2204202 Bracket with two positions square pin Centre to centre distance 48/60 mm 2204206 Adjustable bracket with two positions square pin 2204353 Bracket with two positions square pin center-to-center distance 48/60 mm 2204360 Plate with square pin - Brackets - round head with integrated square pin
CODE DESCRIPTION 2204329 Bracket with center-to-center distance 48/60 mm 2204346 Bracket with center-to-center distance 48 mm 2204348 Bracket with “open” housing for the square pin (only for motors max 30 Nm) 2204349 Adjustable bracket with two positions 2204351 100 x 100 bracket 2204355 Bracket with Ø 10 “click” square pin and splint pin for the direct clutch - Brackets - star head
- Adapters
CODE DESCRIPTION TUBE DIMENSION APPLICATIONS 2204290 Adapters for octagonal with reinforced edges rolling tube Ø 60 mm Rolling shutter 2204294 Adapters for round with groove rolling tube Ø 70 x 0,8 / 1 / 1,2 mm Awnings 2204295 Adapters for round rolling tube Ø 60 x 1,5 mm Awnings 2204296 Adapters for octagonal rolling tube Ø 50 x 0,6 / 0,8 mm Rolling shutter 2204299 Adapters for round rolling tube Ø 50 x 1,5 / 1,6 mm Awnings 2204300 Adapters for round with groove rolling tube Ø 85 x 1,2 mm Awnings 2204302 Adapters for ZF profiled rolling tube Ø 54 x 0,5 mm Rolling shutter 2204304 Adapters for profiled rolling tube Ø 65 x 0,5 / 0,8 mm Awnings 2204305 Adapters for round rolling tube Ø 102 x 2 mm Awnings 2204306 Adapters for ZF profiled rolling tube Ø 64 x 0,5 / 0,6 / 0,8 mm Rolling shutter 2204309 Adapters for deprat rolling tube - F2000 Ø 62 x 0,6 mm Awnings 2204312 Adapters for round rolling tube Ø 70 x 1,5 mm Awnings 2204313 Adapters for round rolling tube Ø 63 x 1,5 mm Awnings 2204314 Adapters for octagonal rolling tube Ø 70 x 1 / 1,2 / 1,5 mm Rolling shutter 2204316 Adapters for deprat rolling tube - F5039 Ø 89 x 1 mm Awnings 2204317 Adapters for ZF profiled rolling tube Ø 80 x 1 / 1,2 mm Rolling shutter 2204318 Adapters for round with groove rolling tube Ø 78 mm Awnings 2204320 Adapters for octagonal rolling tube Ø 60 x 0,5 / 0,6 / 0,8 / 0,9 mm Rolling shutter 2204357 Adapters for ROLLER BAT rolling tube Ø 63 x 0,8 mm Awnings 2204358 Adapters for ROLLER BAT rolling tube Ø 70 mm Awnings 2204359 Adapters for ROLLER BAT rolling tube Ø 80 x 1 mm Awnings - Mechanical accessories
CODE DESCRIPTION 2200017 3 m Ø 70 octagonal tube 2200021 Security spring for 14 mm standard slats 2200022 Security spring for 9 mm slats 2200024 Plastic cap with pivot for Ø 70 octagonal rolling tube 2200026 Adjustable plastic cap with pivot for Ø 70 octagonal rolling tube 2200033 Security block for shutters 2200035 Belt - rolling tube fixing hook 2200037 Wall mounted support with ball bearing 2200038 Surface mounted support with ball bearing 2200146 ZF Rigid link for Ø60 octagonal rolling tube 2204054 Plastic cap with pivot for Ø 60 octagonal rolling tube 2204055 Adjustable plastic cap with pivot for Ø 60 octagonal rolling tube 2204092 Set of two security block adapters for Ø 60 octagonal rolling tube 2204094 3 m Ø 60 octagonal tube - 4pcs package - Switches
CODE DESCRIPTION 2210003 Temporary position switch (wall mounted) 2210004 Temporary position switch (surface mounted) 2210007 Fixed position switch 2210008 Temporary position switch 2210011 Waterproof momentary position switch (surface mounted) 2210012 Temporary position mini switch (surface mounted) 2210013 Fixed position mini switch (surface mounted) - Control unit
CODE DESCRIPTION OPERATING FREQUENCY 2211016 Go-er External receiver for radio control of wired motors (1 motor for each receiver) 433,42 MHz 2211149 Go-er platine External receiver for radio control of wired motors specific for cassette application (1 motor for each receiver) 433,42 MHz 2212004 QMC4 - Control unit for mechanical wired motors connected in parallel (max 4 motors for each control unit) - My Higgins - home automation
CODE DESCRIPTION COLOUR OPERATING FREQUENCY TECHNOLOGY PROT. DEGREE 2211235 MY HIGGINS RTW White 433,42 MHz MHz Rolling code IP30
