Description of specifications:

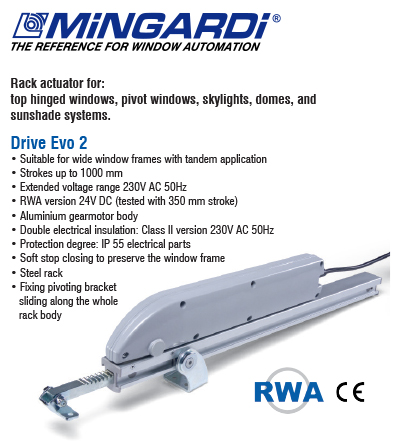

MINGARDI linear electric actuator with movement by a 12x12 section rack contained inside the aluminium tubular. Operating voltages: 230V AC 50Hz or 24V DC. In compliance with the relevant European Directives. 24V DC version tested in accordance with the requirements of the European Standard EN 12101 - 2: 2017. Outfitted with a system of electronic limit switch in opening and closing with overload protection. It can be connected in parallel.

Gearmotor body in alluminum grey RAL 9006, galvanized steel rack. Complete with fixing accessories.

Technical data:

Technical features motors version 230 V~ Gearmotor

CODE	DESCRIPTION	COLOUR	THRUST TENSILE	POWER CONSUMPTION	PROT. DEGREE	SPEED MIN.
2701034	Drive Evo 2	Grey	1000 N	35 W	IP55 electrical parts	~ 7 mm/s

Technical features motors version 24V DC Gearmotor

Connection rod

CODE DESCRIPTION

2700081 Connection rod - Length 890 mm

2700085 Connection rod - Length 1890 mm
Accessories

CODE DESCRIPTION

2700086 Accessories for connecting rod

2700518 Fixing brackets
Gear driven

CODE DESCRIPTION

2700798 Gear driven

CODE	DESCRIPTION	COLOUR	THRUST TENSILE	POWER CONSUMPTION	PROT. DEGREE	SPEED MIN.
2713839	Drive Evo 2 - RWA	Grey	500 N	34 W	IP55 electrical parts	~ 14 mm/s

CODE	DESCRIPTION
2700081	Connection rod - Length 890 mm
2700085	Connection rod - Length 1890 mm

CODE	DESCRIPTION
2700086	Accessories for connecting rod
2700518	Fixing brackets

CODE	DESCRIPTION
2700798	Gear driven

Rack assembly with brackets

CODE	DESCRIPTION
2700500	Rack assembly with brackets - 350 mm
2700715	Rack assembly with brackets - 550 mm
2700790	Rack assembly with brackets - 750 mm
2700510	Rack assembly with brackets - 1000 mm
