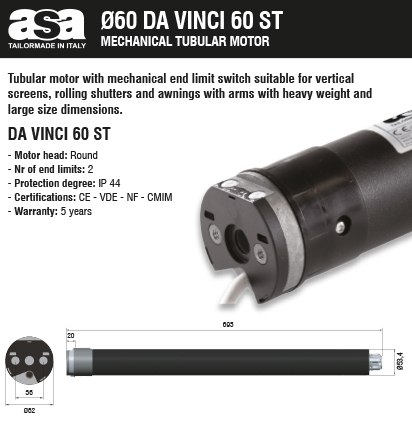

Tubular motor with mechanical end limit switch suitable for vertical screens, rolling shutters and awnings with arms.
Technical data:
- Technical features - round head
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2252150 DAVINCI 60 ST 80/12 G1 A1 B1 80 Nm 12 rpm 230 V ~/50 Hz 23 290 W 695 mm 4,45 Kg 2253142 DAVINCI 60 ST 100/12 G1 A1 B1 100 Nm 12 rpm 230 V ~/50 Hz 23 350 W 695 mm 4,55 Kg 2254138 DAVINCI 60 ST 120/12 G1 A1 B1 120 Nm 12 rpm 230 V ~/50 Hz 23 400 W 695 mm 4,70 Kg - Brackets - round head
- Adapters
CODE DESCRIPTION TUBE DIMENSION APPLICATIONS 2205028 Adapters for octagonal rolling tube Ø 70 mm Rolling shutter 2205029 Adapters for round rolling tube Ø 102 x 2 mm Rolling shutter 2205030 Adapters for deprat rolling tube - F5039 Ø 89 x 1 mm Awnings 2205031 Adapters for ZF80 rolling tube Ø 80 x 1/1,2 mm Rolling shutter 2205032 Adapters for round with groove rolling tube Ø 85 x 1,2 mm Awnings 2205033 Adapters for round with 14 mm groove rolling tube Ø 78 mm Awnings 2205034 Adapters for round rolling tube Ø 70 x 1,5 mm Awnings - Mechanical accessories
- Switches
CODE DESCRIPTION 2210003 Temporary position switch (wall mounted) 2210004 Temporary position switch (surface mounted) 2210007 Fixed position switch 2210008 Temporary position switch 2210011 Waterproof momentary position switch (surface mounted) 2210012 Temporary position mini switch (surface mounted) 2210013 Fixed position mini switch (surface mounted) - Control unit
CODE DESCRIPTION OPERATING FREQUENCY 2211016 Go-er External receiver for radio control of wired motors (1 motor for each receiver) 433,42 MHz 2211149 Go-er platine External receiver for radio control of wired motors specific for cassette application (1 motor for each receiver) 433,42 MHz 2212004 QMC4 - Control unit for mechanical wired motors connected in parallel (max 4 motors for each control unit) - My Higgins - home automation
CODE DESCRIPTION COLOUR OPERATING FREQUENCY TECHNOLOGY PROT. DEGREE 2211235 MY HIGGINS RTW White 433,42 MHz MHz Rolling code IP30
