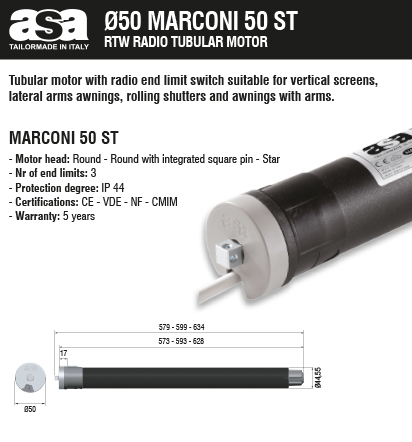

Tubular motor with radio end limit switch suitable for vertical screens, lateral arms awnings, rolling shutters and awnings with arms. Is compatible with all ASA radio controls. Available in 3 configurations: round head - round head with integrated square pin head - star head.
Technical data:
- Technical features - round head
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2240202 MARCONI 50 ST 6/32 G1 A1 B1 6 Nm 32 rpm 230 V ~ / 50 Hz infinite 120 W 573 mm 1,94 Kg 2240213 MARCONI 50 ST 6/17 G1 A1 B1 6 Nm 17 rpm 230 V ~ / 50 Hz infinite 100 W 573 mm 2,13 Kg 2241567 MARCONI 50 ST 10/17 G1 A1 B1 10 Nm 17 rpm 230 V ~ / 50 Hz infinite 120 W 573 mm 1,94 Kg 2242291 MARCONI 50 ST 15/17 G1 A1 B1 15 Nm 17 rpm 230 V ~ / 50 Hz infinite 150 W 593 mm 2,03 Kg 2243672 MARCONI 50 ST 20/17 G1 A1 B1 20 Nm 17 rpm 230 V ~ / 50 Hz infinite 190 W 593 mm 2,08 Kg 2245529 MARCONI 50 ST 30/17 G1 A1 B1 30 Nm 17 rpm 230 V ~ / 50 Hz infinite 240 W 628 mm 2,21 Kg 2247446 MARCONI 50 ST 40/17 G1 A1 B1 40 Nm 17 rpm 230 V ~ / 50 Hz infinite 240 W 628 mm 2,21 Kg 2249445 MARCONI 50 ST 50/12 G1 A1 B1 50 Nm 12 rpm 230 V ~ / 50 Hz infinite 240 W 628 mm 2,21 Kg - Technical features - round head with integrated square pin
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2240201 MARCONI 50 ST 6/32 G1 A2 B1 6 Nm 32 rpm 230 V ~/50 Hz Infinite 120 W 579 mm 1,95 Kg 2240212 MARCONI 50 ST 6/17 G1 A2 B1 6 Nm 17 rpm 230 V ~/50 Hz Infinite 100 W 579 mm 2,14 Kg 2241566 MARCONI 50 ST 10/17 G1 A2 B1 10 Nm 17 rpm 230 V ~/50 Hz Infinite 120 W 579 mm 1,95 Kg 2242290 MARCONI 50 ST 15/17 G1 A2 B1 15 Nm 17 rpm 230 V ~/50 Hz Infinite 150 W 599 mm 2,04 Kg 2243671 MARCONI 50 ST 20/17 G1 A2 B1 20 Nm 17 rpm 230 V ~/50 Hz Infinite 190 W 599 mm 2,09 Kg 2245528 MARCONI 50 ST 30/17 G1 A2 B1 30 Nm 17 rpm 230 V ~/50 Hz Infinite 240 W 634 mm 2,22 Kg 2247445 MARCONI 50 ST 40/17 G1 A2 B1 40 Nm 17 rpm 230 V ~/50 Hz Infinite 240 W 634 mm 2,22 Kg 2249444 MARCONI 50 ST 50/12 G1 A2 B1 50 Nm 12 rpm 230 V ~/50 Hz Infinite 240 W 634 mm 2,22 Kg - Technical features - star head
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2254744 MARCONI 50 ST 6/32 G1 A10 B1 6 Nm 32 rpm 230 V ~/50 Hz Infinite 120 W 576 mm 1,94 Kg 2254233 MARCONI 50 ST 6/17 G1 A10 B1 6 Nm 17 rpm 230 V ~/50 Hz Infinite 100 W 576 mm 2,14 Kg 2254234 MARCONI 50 ST 10/17 G1 A10 B1 10 Nm 17 rpm 230 V ~/50 Hz Infinite 120 W 576 mm 1,95 Kg 2254235 MARCONI 50 ST 15/17 G1 A10 B1 15 Nm 17 rpm 230 V ~/50 Hz Infinite 150 W 596 mm 2,04 Kg 2254236 MARCONI 50 ST 20/17 G1 A10 B1 20 Nm 17 rpm 230 V ~/50 Hz Infinite 190 W 596 mm 2,09 Kg 2254237 MARCONI 50 ST 30/17 G1 A10 B1 30 Nm 17 rpm 230 V ~/50 Hz Infinite 240 W 631 mm 2,22 Kg 2254238 MARCONI 50 ST 40/17 G1 A10 B1 40 Nm 17 rpm 230 V ~/50 Hz Infinite 240 W 631 mm 2,22 Kg 2254239 MARCONI 50 ST 50/12 G1 A10 B1 50 Nm 12 rpm 230 V ~/50 Hz Infinite 240 W 631 mm 2,22 Kg - Brackets - round head
CODE DESCRIPTION 2204001 Bracket with square pin - threaded holes with center - to - center distance 48 mm 2204003 Fast connection bracket minimum overall dimensions (only for motors max 35 Nm) 2204011 100x100 bracket with two positions round pin 2204014 Bracket with square pin - center to center distance 48/60 mm 2204017 Bracket Ø 10 threading pin for the direct clutch on the existing clamp 2204022 Bracket for support type "Torino" (match with square pin for motors) 2204032 Bracket with "open" housing for square pin. Clutch the pin from "above" (only for motors max 30 Nm) 2204042 Bracket for mini boxes - Length 137 mm 2204045 Metal bracket with hexagonal pin. Clutch the pin from "above" 2204088 100 x 100 bracket plate 2204100 Adjustable bracket with two positions round pin 2204107 Bracket for mini boxes - Length 90 mm 2204109 Minimum overall dimension bracket 2204112 Bracket for awnings with two positions round pin 2204145 Bracket with two positions round pin and housing 2204198 100 x 100 bracket with two positions square pin 2204202 Bracket with two positions square pin Centre to centre distance 48/60 mm 2204206 Adjustable bracket with two positions square pin 2204353 Bracket with two positions square pin center-to-center distance 48/60 mm 2204360 Plate with square pin - Brackets - round head with integrated square pin
CODE DESCRIPTION 2204329 Bracket with center-to-center distance 48/60 mm 2204346 Bracket with center-to-center distance 48 mm 2204348 Bracket with “open” housing for the square pin (only for motors max 30 Nm) 2204349 Adjustable bracket with two positions 2204351 100 x 100 bracket 2204355 Bracket with Ø 10 “click” square pin and splint pin for the direct clutch - Brackets - star head
- Adapters
CODE DESCRIPTION TUBE DIMENSION APPLICATIONS 2204290 Adapters for octagonal with reinforced edges rolling tube Ø 60 mm Rolling shutter 2204294 Adapters for round with groove rolling tube Ø 70 x 0,8 / 1 / 1,2 mm Awnings 2204295 Adapters for round rolling tube Ø 60 x 1,5 mm Awnings 2204296 Adapters for octagonal rolling tube Ø 50 x 0,6 / 0,8 mm Rolling shutter 2204299 Adapters for round rolling tube Ø 50 x 1,5 / 1,6 mm Awnings 2204300 Adapters for round with groove rolling tube Ø 85 x 1,2 mm Awnings 2204302 Adapters for ZF profiled rolling tube Ø 54 x 0,5 mm Rolling shutter 2204304 Adapters for profiled rolling tube Ø 65 x 0,5 / 0,8 mm Awnings 2204305 Adapters for round rolling tube Ø 102 x 2 mm Awnings 2204306 Adapters for ZF profiled rolling tube Ø 64 x 0,5 / 0,6 / 0,8 mm Rolling shutter 2204309 Adapters for deprat rolling tube - F2000 Ø 62 x 0,6 mm Awnings 2204312 Adapters for round rolling tube Ø 70 x 1,5 mm Awnings 2204313 Adapters for round rolling tube Ø 63 x 1,5 mm Awnings 2204314 Adapters for octagonal rolling tube Ø 70 x 1 / 1,2 / 1,5 mm Rolling shutter 2204316 Adapters for deprat rolling tube - F5039 Ø 89 x 1 mm Awnings 2204317 Adapters for ZF profiled rolling tube Ø 80 x 1 / 1,2 mm Rolling shutter 2204318 Adapters for round with groove rolling tube Ø 78 mm Awnings 2204320 Adapters for octagonal rolling tube Ø 60 x 0,5 / 0,6 / 0,8 / 0,9 mm Rolling shutter 2204357 Adapters for ROLLER BAT rolling tube Ø 63 x 0,8 mm Awnings 2204358 Adapters for ROLLER BAT rolling tube Ø 70 mm Awnings 2204359 Adapters for ROLLER BAT rolling tube Ø 80 x 1 mm Awnings - Sensors
CODE DESCRIPTION OPERATING FREQUENCY POWER SUPPLY 2212017 Sv-er Sun and wind radio sensor 433,42 MHz 230 V ~ / 50 Hz 2212125 Wind-er Wireless radio wind sensor 433,42 MHz 2 alkaline batteries 1,5 Vdc 1100 mAh - type “AAA” 2212123 Sun-er Wireless radio sun and temperature sensor 433,42 MHz 1 lithium battery 3 Vdc 280 mAh - type “CR2430” - Mechanical accessories
CODE DESCRIPTION 2200017 3 m Ø 70 octagonal tube 2200021 Security spring for 14 mm standard slats 2200022 Security spring for 9 mm slats 2200024 Plastic cap with pivot for Ø 70 octagonal rolling tube 2200026 Adjustable plastic cap with pivot for Ø 70 octagonal rolling tube 2200033 Security block for shutters 2200035 Belt - rolling tube fixing hook 2200037 Wall mounted support with ball bearing 2200038 Surface mounted support with ball bearing 2200146 ZF Rigid link for Ø60 octagonal rolling tube 2204054 Plastic cap with pivot for Ø 60 octagonal rolling tube 2204055 Adjustable plastic cap with pivot for Ø 60 octagonal rolling tube 2204092 Set of two security block adapters for Ø 60 octagonal rolling tube 2204094 3 m Ø 60 octagonal tube - 4pcs package - Elegance transmitters
CODE DESCRIPTION COLOUR OPERATING FREQUENCY NR. CHANNEL TECHNOLOGY 2211123 Go-1 Elegance 1 channel remote control Black 433,42 MHz 1 Rolling code 2211118 Go-1 Elegance 1 channel remote control White 433,42 MHz 1 Rolling code 2211124 Go-4 Elegance 5 channels remote control Black 433,42 MHz 5 Rolling code 2211119 Go-4 Elegance 5 channels remote control White 433,42 MHz 5 Rolling code 2211122 Go-sv Elegance remote control for sun and wind sensor White 433,42 MHz 1 Rolling code 2213829 GO-4SV Elegance remote control 5 channels for sun and wind sensor Black 433,42 MHz 5 Rolling code 2213828 GO-4SV Elegance remote control 5 channels for sun and wind sensor White 433,42 MHz 5 Rolling code 2211127 Go-p1 Elegance 1 channel wall switch remote control Black 433,42 MHz 1 Rolling code 2211126 Go-p1 Elegance 1 channel wall switch remote control White 433,42 MHz 1 Rolling code 2211147 Go-16 Elegance Multi channel remote control Black 433,42 MHz 16 Rolling code 2211146 Go-16 Elegance Multi channel remote control White 433,42 MHz 16 Rolling code 2211135 Go-6T Elegance multi-timer remote control Black 433,42 MHz 6 Rolling code 2211134 Go-6T Elegance multi-timer remote control White 433,42 MHz 6 Rolling code - Rainbow transmitters
CODE DESCRIPTION COLOUR OPERATING FREQUENCY NR. CHANNEL TECHNOLOGY 2211083 Go-1 Rainbow 1 channel remote control Black 433.42 MHz 1 Rolling code 2211065 Go-1 Rainbow 1 channel remote control White 433.42 MHz 1 Rolling code 2211082 Go-1 Rainbow 1 channel remote control Grey 433.42 MHz 1 Rolling code 2211085 Go-4 Rainbow 5 channels remote control Black 433.42 MHz 5 Rolling code 2211066 Go-4 Rainbow 5 channels remote control White 433.42 MHz 5 Rolling code 2211084 Go-4 Rainbow 5 channels remote control Grey 433.42 MHz 5 Rolling code 2211081 Go-sv Rainbow remote control for sun and wind sensor Black 433.42 MHz 1 Rolling code 2211067 Go-sv Rainbow remote control for sun and wind sensor White 433.42 MHz 1 Rolling code 2211080 Go-sv Rainbow remote control for sun and wind sensor Grey 433.42 MHz 1 Rolling code 2211087 Go-p1 Elegance 1 channel wall switch remote control Black 433.42 MHz 1 Rolling code 2211068 Go-p1 Rainbow wall switch remote control White 433.42 MHz 1 Rolling code 2211086 Go-p1 Rainbow wall switch remote control Grey 433.42 MHz 1 Rolling code - Fellini transmitters
CODE DESCRIPTION COLOUR OPERATING FREQUENCY NR. CHANNEL TECHNOLOGY 2211269 FELLINI 1 channel remote control Black 433,42 MHz 1 Rolling code 2213811 FELLINI 1 channel remote control White 433,42 MHz 1 Rolling code 2211270 FELLINI 5 5 channels remote control Black 433,42 MHz 5 Rolling code 2213812 FELLINI 5 5 channels remote control White 433,42 MHz 5 Rolling code 2213813 FELLINI SV Remote control for sun and wind sensor White 433,42 MHz 1 Rolling code 2211282 FELLINI 1P Wall remote control Black 433,42 MHz 1 Rolling code 2213814 FELLINI 1P Wall remote control White 433,42 MHz 1 Rolling code - Timer
CODE DESCRIPTION OPERATING FREQUENCY 2211014 Tim-er Transmitter with clock for the control of motors 433,42 MHz - My Higgins - home automation
CODE DESCRIPTION COLOUR OPERATING FREQUENCY TECHNOLOGY PROT. DEGREE 2211235 MY HIGGINS RTW White 433,42 MHz MHz Rolling code IP30
