Description of specifications:

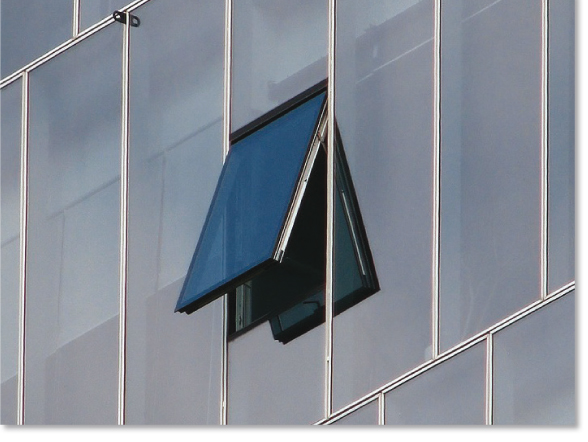

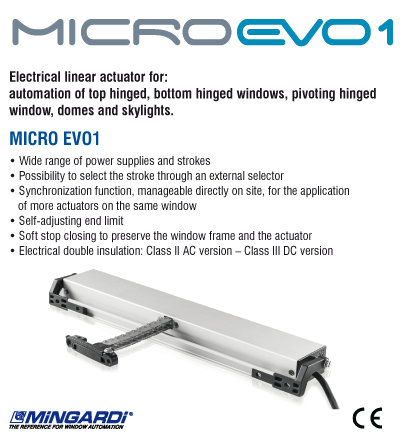

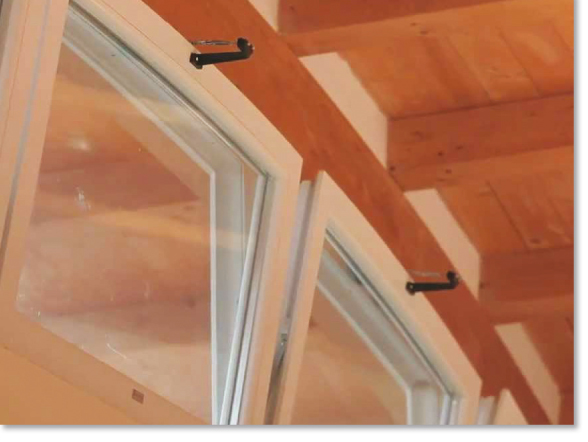

MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit. Available operating voltages: 110-240 V, 50/60 Hz AC or 24 V DC. Suitable for parallel wiring. In compliance with the relevant European Directives. Available versions: anodized silver or painted black RAL 9005 casing with black accessories and cable; White RAL 9003 casing version available with white accessories and cable. Complete with accessories for installation on top hinged or bottom hinged windows.
MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit. Available operating voltages: 110-240 V, 50/60 Hz AC or 24 V DC. Suitable for parallel wiring. In compliance with the relevant European Directives. Available versions: anodized silver or painted black RAL 9005 casing with black accessories and cable; White RAL 9003 casing version available with white accessories and cable. Complete with accessories for installation on top hinged or bottom hinged windows.
Technical data:
- Technical features motors version 110-240V
CODE DESCRIPTION COLOUR SELECTABLE STROKE THRUST TENSILE POWER CONSUMPTION PROT. DEGREE SPEED MIN. 2713804 MICRO EVO1 Anodized Silver 100-200-300-400 mm 300 N 25 W IP32 13 mm/s 2713806 MICRO EVO1 Black RAL 9005 100-200-300-400 mm 300 N 25 W IP32 13 mm/s 2713805 MICRO EVO1 White RAL 9003 100-200-300-400 mm 300 N 25 W IP32 13 mm/s - Technical features 24 V=
CODE DESCRIPTION COLOUR SELECTABLE STROKE THRUST TENSILE POWER CONSUMPTION PROT. DEGREE SPEED MIN. 2713792 MICRO EVO1 Anodized Silver 100-200-300-400 mm 300 N 24 W IP32 13 mm/s 2713793 MICRO EVO1 Black RAL 9005 100-200-300-400 mm 300 N 24 W IP32 13 mm/s 2713794 MICRO EVO1 White RAL 9003 100-200-300-400 mm 300 N 24 W IP32 13 mm/s - Fixing accessories
CODE DESCRIPTION COLOUR 2701010 Top hinged window bracket Black 2701011 Bottom hinged window bracket Black 2701017 Top hinged window bracket White 2701018 Bottom hinged window bracket White 2701023 Pivoting motor support bracket Silver+Black 2701024 Pivoting motor support bracket Black 2701025 Pivoting motor support bracket White 2701056 Bottom hinged window metallic bracket Black 2701057 Bottom hinged window metallic bracket White
