Description of specifications:

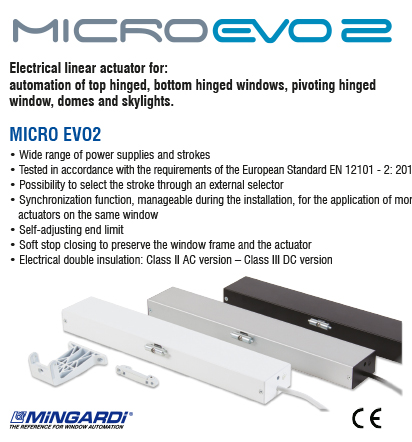

MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit. Available operating voltages: 110-240V, 50-60Hz AC or 24V DC. Suitable for parallel wiring. In compliance with the relevant European Directives. Available version: anodized silver or painted black RAL9005 casing with black accessories and cable, White RAL9003 casing version available with white accessories and cable. To be installed on top hinged or bottom hinged windows. Tested to be installed on smoke and heat evacuation devices.
MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit. Available operating voltages: 110-240V, 50-60Hz AC or 24V DC. Suitable for parallel wiring. In compliance with the relevant European Directives. Available version: anodized silver or painted black RAL9005 casing with black accessories and cable, White RAL9003 casing version available with white accessories and cable. To be installed on top hinged or bottom hinged windows. Tested to be installed on smoke and heat evacuation devices.
Technical data:
- Technical features motors version 110-240V
CODE DESCRIPTION COLOUR SELECTABLE STROKE POWER CONSUMPTION TENSILE FORCE PROT. DEGREE SPEED MIN. 2701059 MICRO EVO2 Anodized Silver 150 - 300 - 450 - 600 mm 30 W 400 N IP32 15 mm/s 2701063 MICRO EVO2 Black RAL 9005 150 - 300 - 450 - 600 mm 30 W 400 N IP32 15 mm/s 2701064 MICRO EVO2 White RAL 9003 150 - 300 - 450 - 600 mm 30 W 400 N IP32 15 mm/s - Technical features 24 V=
CODE DESCRIPTION COLOUR SELECTABLE STROKE POWER CONSUMPTION TENSILE FORCE PROT. DEGREE SPEED MIN. 2701058 MICRO EVO2 - RWA Anodized Silver 150 - 300 - 450 - 600 mm 28 W 400 N IP32 15 mm/s 2701065 MICRO EVO2 - RWA Black RAL 9005 150 - 300 - 450 - 600 mm 28 W 400 N IP32 15 mm/s 2701066 MICRO EVO2 - RWA White RAL 9003 150 - 300 - 450 - 600 mm 28 W 400 N IP32 15 mm/s - Fixing accessories
CODE DESCRIPTION COLOUR 2701010 Top hinged window bracket Black 2701017 Top hinged window bracket White 2701069 Pivoting motor support bracket Silver 2701070 Pivoting motor support bracket Black 2701071 Pivoting motor support bracket White 2713820 Bottom hinged window bracket White 2713821 Bottom hinged window bracket Black
