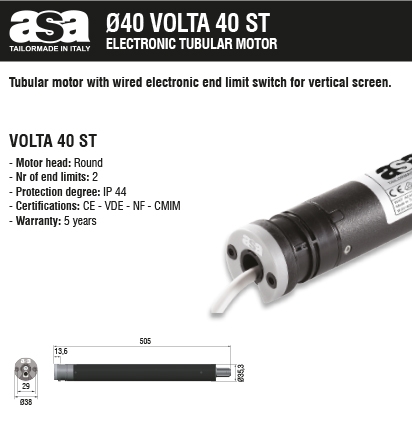

Tubular motor with wired electronic end limit switch for vertical screen.
Technical data:
- Technical features - round head
CODE DESCRIPTION TORQUE SPEED POWER SUPPLY LS ROUNDS CONSUMPTION LENGHT MOTOR WEIGHT 2255033 VOLTA 40 ST 3/30 G1 A1 B1 3 Nm 30 rpm 230 V ~/50 Hz infinite 90 W 505 mm 1,15 Kg 2255034 VOLTA 40 ST 9/16 G1 A1 B1 9 Nm 16 rpm 230 V ~/50 Hz infinite 110 W 505 mm 1,15 Kg 2255035 VOLTA 40 ST 13/10 G1 A1 B1 13 Nm 10 rpm 230 V ~/50 Hz infinite 110 W 505 mm 1,15 Kg - Brackets - round head
CODE DESCRIPTION 2203000 Square pin plate 2203003 Bracket with square pin - centre to centre distance 48/60 mm - threaded holes 2203006 Bracket with square pin - centre to centre distance 48 mm - threaded holes 2203020 Fast connection bracket 2203023 Bracket with "open" housing for square pin - centre to centre distance 48 mm 2203042 Minimum overall dimension bracket 2203045 Bracket for mini box - Length 90 mm 2203048 Bracket for mini box - Length 137 mm - Adapters
CODE DESCRIPTION TUBE DIMENSION MATERIAL APPLICATIONS 2203096 Adapters for octagonal rolling tube Ø 40 x 0,6 / 0,8 mm Rolling shutter 2203098 Adapters for round rolling tube Ø 40 x 1 mm Screen 2203099 Adapters for round rolling tube Ø 40 x 1,5 mm Screen 2203101 Adapters for round with groove rolling Ø 50 x 2 mm Screen 2203103 Adapters for ZF45 rolling tube Ø 45 x 0,5 / 0,6 mm Plastic Rolling shutter 2204364 Adapters for HD 50 rolling tube Ø 53,7 x 1,85 mm Screen 2204386 Adapters for round rolling tube rubber profile Ø 40 x 1,5 mm Screen
