Description of specifications:

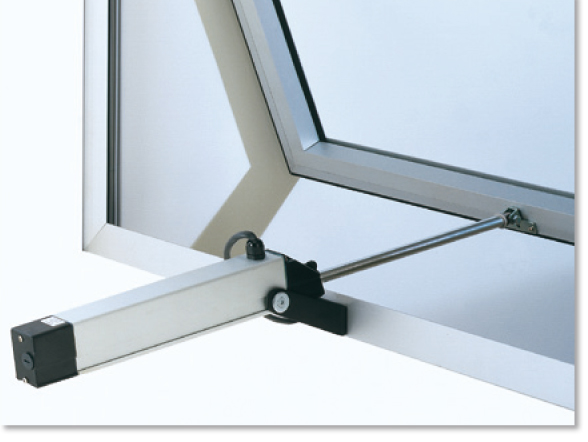

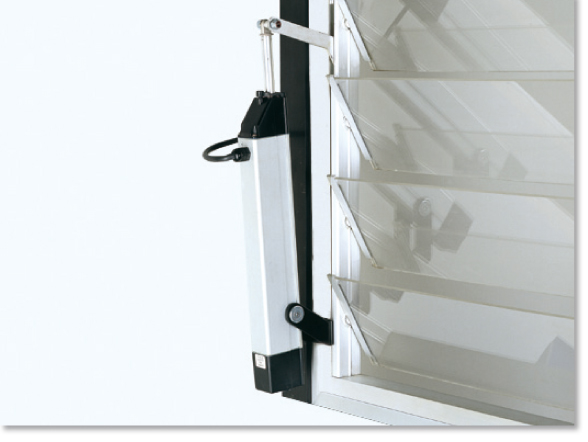

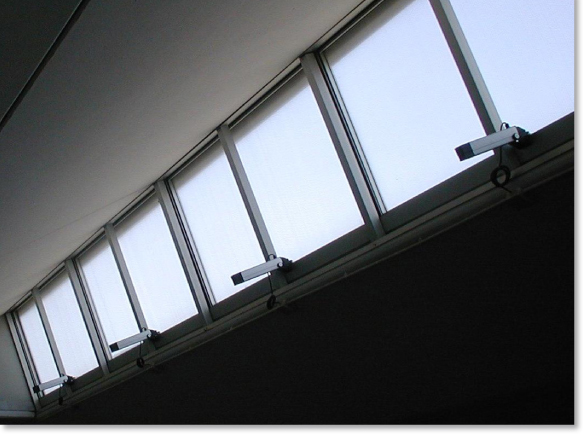

MINGARDI linear electric actuator with rigid rod. Operating voltage: 230V AC 50Hz or 24V DC. In compliance with the relevant European Directives. Equipped with a system of electronic limit switch in opening and closing with overload protection. Possibility of parallel wiring. The stroke can be adjusted from the outside through a register.
Colors available: anodised silver. Complete with fixing accessories.

Technical data:

Technical features 230 V~

CODE	DESCRIPTION	STROKE	COLOUR	THRUST TENSILE	POWER CONSUMPTION	PROT. DEGREE	SPEED MIN.	CABLE	SUPPORT BRACKET	VOLTAGE
2700981	EURO 1	300 mm	Silver	450 N	35 W	IP 55	ca. 10 mm/s	Upper	Silver	230V~ / 50Hz
2700994	EURO 1	300 mm	Silver	1000 N	30 W	IP 55	ca. 2,5 mm/s	Upper	Silver	230V~ / 50Hz

Technical features 24 V=

CODE	DESCRIPTION	STROKE	COLOUR	THRUST TENSILE	POWER CONSUMPTION	PROT. DEGREE	SPEED MIN.	CABLE	SUPPORT BRACKET	VOLTAGE
2700971	EURO 1	500 mm	Silver	450 N	35 W	IP 55	ca. 10 mm/s	Upper	Silver	24 V=

Fixing accessories

CODE	DESCRIPTION
2700102	Front pin for sunshades application
2700105	Special actuator support bracket
2713835	Kit actuator support bracket
