Description of specifications:

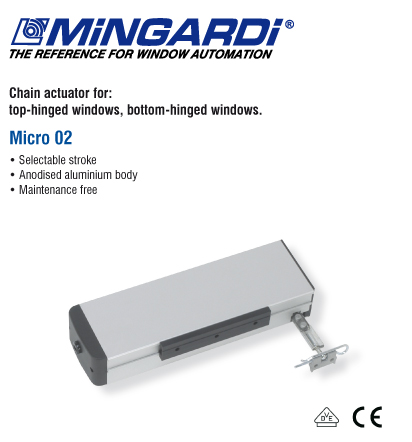

MINGARDI linear electric actuator with sproket chain inside the actuator body. Operating voltage: 230V AC 50Hz. In compliance with the relevant European Directives. Outfitted with end-of stroke microswitch in closed position / reed contact in open position system. Selectable stroke by means of external selector. Can be connected in parallel with signal outputs.

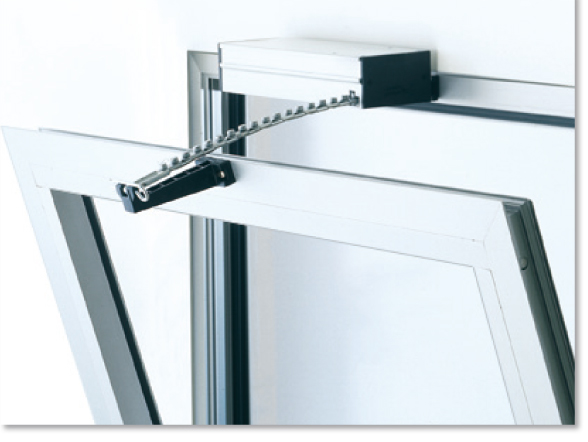

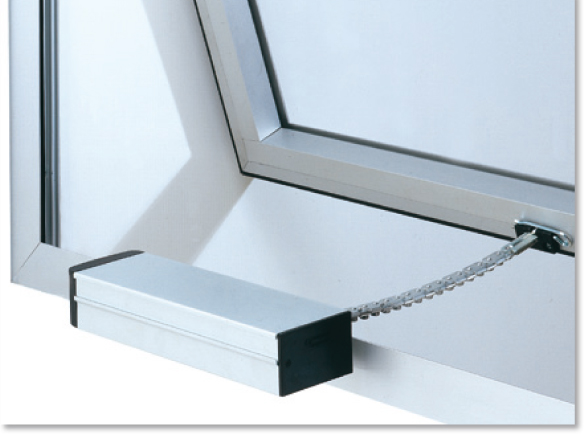

Available colours: anodised silver (A) - anodised black (N) - RAL 9003 (B). Complete with accessories for top-hinged windows.
Technical data:
- Technical features 230 V~
CODE DESCRIPTION STROKE COLOUR THRUST TENSILE POWER CONSUMPTION PROT. DEGREE SPEED MIN. VOLTAGE 2700462 MICRO 02 250 / 365 mm Silver 150 / 300 N 130 W IP 20 ca. 35 mm/s 230V~ / 50Hz 2700469 MICRO 02 250 / 365 mm Black 150 / 300 N 130 W IP 20 ca. 35 mm/s 230V~ / 50Hz 2700463 MICRO 02 250 / 365 mm White 150 / 300 N 130 W IP 20 ca. 35 mm/s 230V~ / 50Hz - Fixing accessories
- Control unit for actuators 230V AC 50Hz
CODE DESCRIPTION 2700171 Control unit for 2 actuators 230V AC 50Hz
Download:
